Project Description

PentaCODE® Series

The Next Generation of Wireless Key Fob Remote Controls, Superior to Rolling Code Remotes

The PentaCODE® dual coding system gives the installer the option to use the classic 12-way dip switch coding or one of over 17 billion encrypted codes.

PentaCODE® Brochure
Programming Instructions
OEM DATASHEET

With the 12-way dip switch, just match the key fob remotes and the receiver’s dip switch and it’s coded. Easy, secure and simple to code.

With the encrypted code you switch all the 12- way dip switches OFF and the remote and receiver automatically goes into the encrypted coding.
Click here to view compatible receivers.

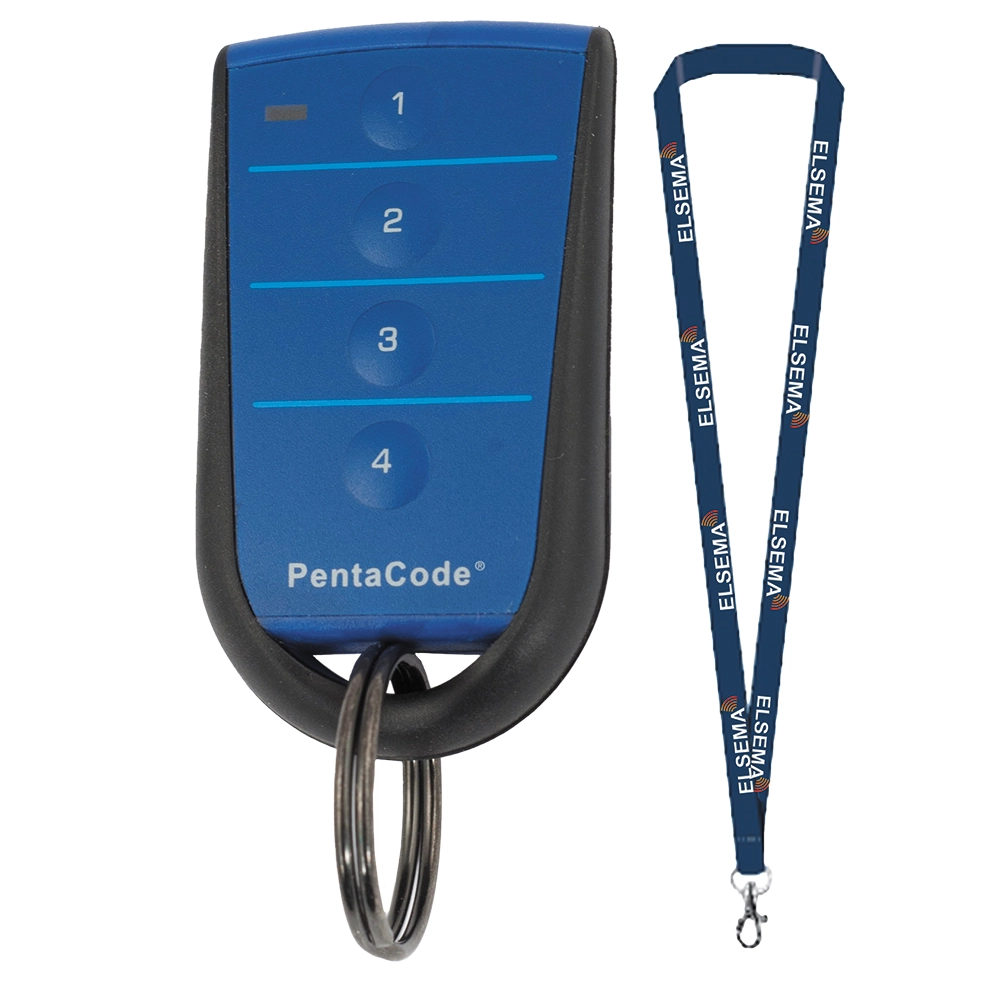

  • Keyring transmitter with 2 or 4 channels
  • Dual Coding System, 12-way dip switch coding or one of over 17 billion encrypted codes
  • Simultaneously transmits the code on 5 different frequencies, making it impossible for the remote to be interfered with or jammed
  • Uses frequency hopping spread spectrum (FHSS)
  • One of the most secure remote controls on the market
  • Designed in Australia and competitive pricing
  • AS/NZS 4268, CE and FCC Certified
  • 12-way dip switch coding or one of over 17 billion encrypted codes.
  • Option of 2 or 4 buttons.
  • Operating range of up to 200 metres depending on building structure and receiver antenna
  • 18mA (typical) at 12 Volts DC supply during transmission
  • Battery life of 1.5 years with average use
  • Operating frequency: 433.100 to 434.700 MHz
  • Custom print available for front labels.
  • PentaCODE brochure

Ordering Information:

Part Number Description Part Number Description
PCK43302 2-channel, keyring transmitter PCK43304 4-channel, keyring transmitter
SV100 Sun visor holder or belt clip for keyring transmitter WB100 Wall mount bracket for the keyring transmitter
