PCR43302R & PCR43302RE

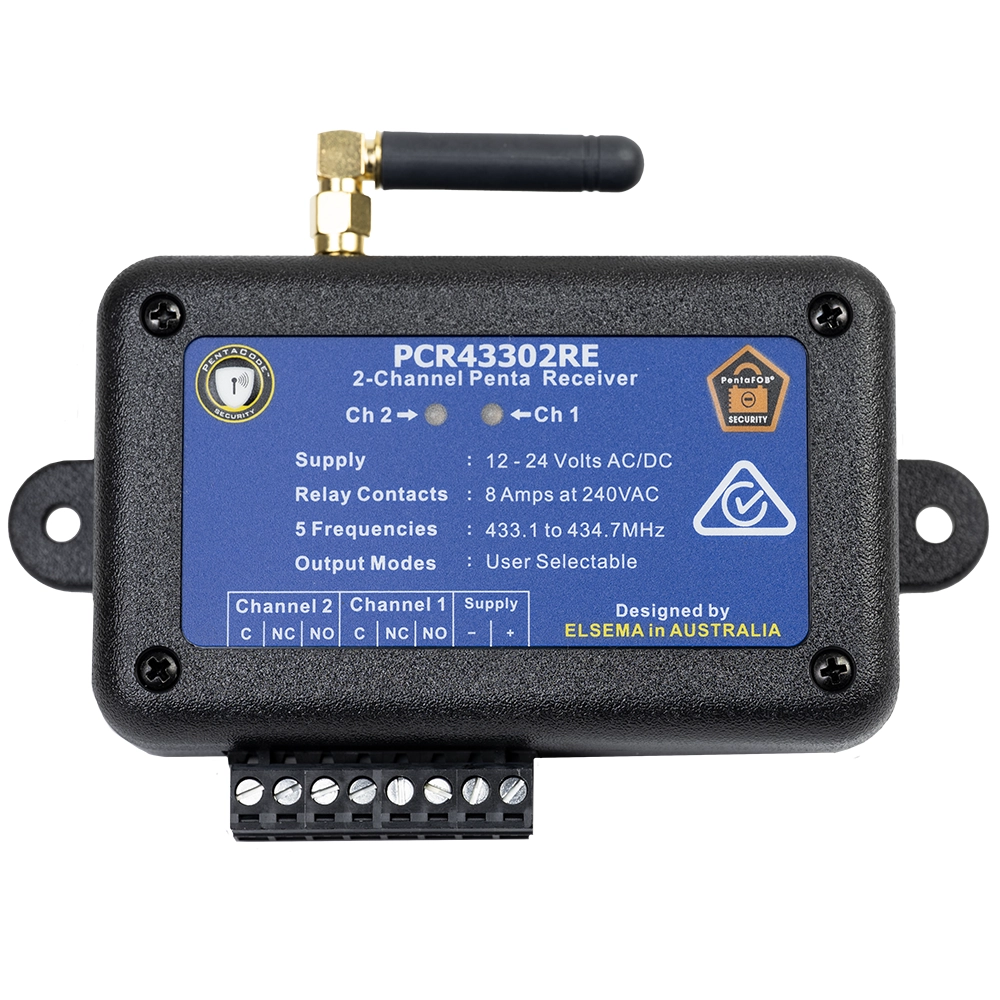

Two Channel Penta Series Receiver. PCR43302RE
The PCR43302R receiver is a sophisticated 2 channel solution designed for seamless integration with both “PentaFOB®” and “PentaCODE®” remotes. Its dual channel capability allows you to control two different devices, making it perfect for use in automatic gate openers, garage door controls, and other applications requiring reliable wireless communication. Its compact design ensures easy installation within various systems where efficient signal transmission is key.
A key feature of the PCR43302R is its compatibility with the PentaCODE® dual coding system, providing installers with the flexibility to choose between the traditional 12-way dip switch coding method and an advanced encrypted coding option with over 17 billion possible code combinations. This dual coding feature ensures that the receiver can cater to a broad spectrum of security requirements, from simple to highly secure setups.
For those who prefer the ease of the 12-way dip switch method, configuration is straightforward: just match the dip switch positions on both the remote and the receiver. This method is quick and dependable, ideal for applications where simplicity is essential. If higher security is a priority, the encrypted coding option offers a robust alternative. To activate this mode, turn all the 12-way dip switches to the OFF position, which automatically switches the receiver into encrypted mode. Comprehensive instructions are provided to guide you through the process, ensuring a secure and smooth setup.
In summary, the PCR43302R receiver combines dual channel functionality with flexible coding options, making it a versatile choice for a wide range of wireless control applications.
Technical Specifications
Frequency
433MHz Licence free band
Frequency Hopping Spread Spectrum
Applications
Click here
Usable Transmitters
PentaFOB®Series
PentaCODE®Series
Supply Voltage
12 – 24 Volts AC/DC
Coding
Encrypted coding or 12-way dipswitch
Antenna
433MHz Series
Output Type
Voltage free relay output
Output Modes
Momentary, Latching & Delayed Off
Enclosed Version
PCR43302RE
Storage Capability
Unlimited Remotes
Dimension
87 x 52 x 20 mm
Compliance
Click here
Elsema: Frequently Asked Questions
What is the Elsema PCR43302R receiver?
The PCR43302R is a high-performance, 2-channel wireless receiver that uses Frequency Hopping Spread Spectrum (FHSS) technology. It is designed to provide secure and reliable control for automatic gates, garage doors, commercial shutters, and home automation systems.
How many devices can the PCR43302R control?
The PCR43302R features two independent relay outputs. This allows you to control two separate devices such as two different garage doors or a gate and a garden light using a single receiver.
Which remote controls are compatible with the PCR43302R?
The PCR43302R is compatible with all Elsema PentaFOB® and PentaCODE® series remote controls. It allows for the simultaneous use of both series, giving users flexibility in choosing their preferred remote style.
What coding options does the receiver support?
The PCR43302R features a dual coding system:
- 12-way Dip Switch Coding: Users can simply match the dip switch settings on the remote and receiver for quick setup.
- Encrypted Coding: By setting all 12 dip switches to the “OFF” position, the receiver uses over 17 billion encrypted code combinations for maximum security.
What are the different output modes available?
Each channel can be independently configured to suit different applications. Selectable modes include:
- Momentary: The relay stays active only while the remote button is pressed.
- Latching: The relay toggles between “on” and “off” with each press.
- Delayed Off: The relay stays active for a set period after the button is released.
- On-Off: Button 1 turns relay ON and Button 2 turns relay OFF.
- Roller Shutter Mode: Specifically designed for open/stop/close operations.
- Security Latching: The relay stays active until power to the receiver is removed.
How many remotes can I program to the receiver?
The PCR43302R has unlimited storage capability. This makes it an ideal choice for high-user environments such as apartment complexes, commercial car parks, or large gated communities where many people require access.
Does the PCR43302R come in an enclosure?
The PCR43302R is the PCB-only (printed circuit board) version, designed to be integrated into existing control panels or custom enclosures. The PCR43302RE is pre-housed in a weatherproof enclosure.
What is the operating range of the system?
While the range depends on the transmitter used and environmental factors, the PCR43302R typically achieves up to 100 metres with PentaFOB® remotes and up to 200 metres with PentaCODE® transmitters. Range can be further extended using an external antenna like the Elsema ANT433S.
What are the power supply requirements?
The PCR43302R operates on a wide supply voltage range from 12 to 24 Volts AC or DC. This versatility allows it to be powered by most standard gate and door control boards or a separate power pack.
What is the capacity of the relay outputs?
The two relay outputs are highly robust, rated at 8 Amps at 240 Volts AC. This allows the receiver to switch significant electrical loads directly, such as motors or large lighting systems.
