PCR43302P
Two Channel Penta Series 433MHz Receiver. PCR43302P

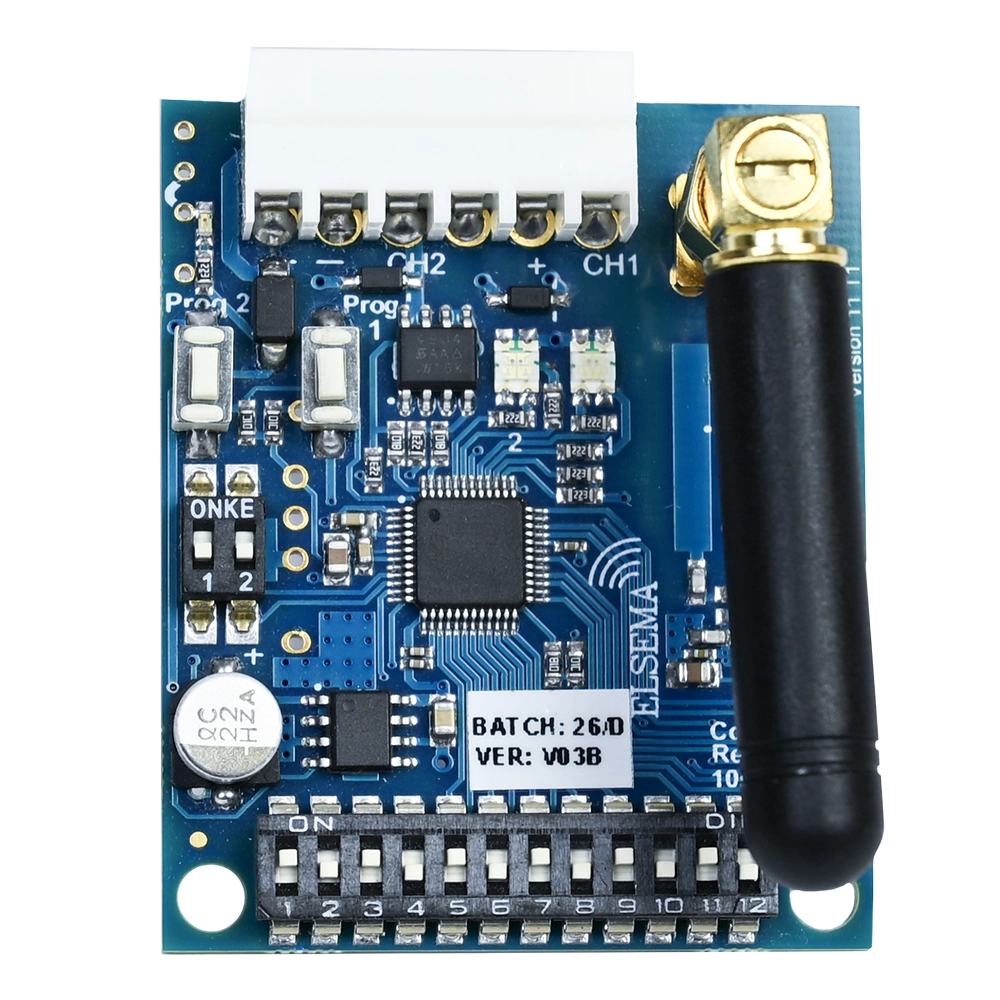

The PCR43302P receiver is a compact yet powerful solution compatible with both “PentaFOB®” and “PentaCODE®” remotes. Measuring just 55 x 44 x 13 mm, it is one of our smallest receivers, but its size doesn’t compromise its performance. Utilizing advanced Mosfet technology, the PCR43302P delivers two high current outputs, each capable of switching up to 2 Amps at 40VDC. This makes it a reliable choice for various applications that require robust control in a small package. Combined with our relay cards, these receiver’s can be used to switch bigger loads.
One of the key features of the PCR43302P is its support for the PentaCODE® dual coding system. This system offers installers the flexibility to choose between the classic 12-way dip switch coding and an encrypted coding option with over 17 billion possible codes. For those who prefer the traditional method, simply match the dip switches on the keyring remote and the receiver for instant coding. For enhanced security, switch all the dip switches to the OFF position to automatically enable the encrypted coding, providing a more secure connection.
The PCR43302P is also designed for easy integration, available as a plug-in type with a standard 6 pin connector. This connector simplifies installation, allowing you to seamlessly incorporate the receiver into your existing designs. In summary, the PCR43302P combines compact size, powerful performance, and versatile coding options, making it an excellent choice for a wide range of wireless control applications.
Technical Specifications
Frequency
433MHz Licence free band
Frequency Hopping Spread Spectrum
Applications
Click here
Usable Transmitters
PentaFOB®Series
PentaCODE®Series
Supply Voltage
7 – 36 Volts DC
Coding
Encrypted coding or 12-way dipswitch
Antenna
433MHz Series
Output Type
Open Collector
Output Modes
Momentary & Latching
Enclosed Version
PCR43301RE
Storage Capability
Unlimited Remotes
Dimension
55 x 44 x 13 mm
Compliance
Click here
Elsema: Frequently Asked Questions
What is the Elsema PCR43302P receiver used for?
The PCR43302P is a compact, high-performance 2-channel receiver designed to provide wireless control for applications such as automatic gates, garage doors, commercial shutters, and security alarms. It is specifically designed as a plug-in module for easy integration into existing control boards.
Which remote controls are compatible with the PCR43302P?
The PCR43302P is fully compatible with Elsema’s PentaFOB® and PentaCODE® series of remote controls. This allows users to mix and match different remote styles (keyring, waterproof, or dip-switch types) on a single receiver platform.
What is the benefit of the PentaCODE® dual-coding system?
The PCR43302P offers two coding methods on one device for maximum flexibility:
- 12-way Dip Switch: Ideal for easy coding by matching switches on the remote and receiver.
- Encrypted Coding: By switching all dip switches to “OFF,” the receiver enables over 17 billion encrypted code combinations for high-security applications.
How does Frequency Hopping Spread Spectrum (FHSS) technology work?
The PCR43302P uses FHSS technology to hop across five different frequencies in the 433MHz frequency band in a unique pattern. This makes the system nearly impossible to jam or interfere with, ensuring a highly reliable connection even in environments with high radio frequency noise.
Can I set the PCR43302P outputs to different modes?
Yes, each of the two channels can be independently configured to operate in either Momentary or Latching mode.
- Momentary: The output is active only while the remote button is pressed.
- Latching: The output stays active until the remote button is pressed again.
How many remotes can be programmed to the PCR43302P?
The receiver is designed with unlimited storage capability, meaning you can program an unrestricted number of remotes to the device. This makes it an ideal solution for high-traffic areas like apartment complexes, gated communities, or large commercial parking lots.
What are the electrical specifications for the power supply?
The PCR43302P operates on a wide supply voltage range from 7 to 36 Volts DC. It is designed for low power consumption, typically drawing around 20mA in standby mode.
What type of output does the PCR43302P provide?
The PCR43302P features Open Collector outputs. Each output is capable of switching high currents of up to 2 Amps at 40VDC, making it robust enough to trigger most control boards directly.
Is it easy to install the PCR43302P in existing systems?
Yes, the PCR43302P features a standard 6-pin plug-in connector. This plug and play design allows for rapid installation or replacement into compatible control boards without the need for complex wiring.
What are the physical dimensions of the unit?
The PCR43302P is one of Elsema’s smallest receivers, measuring just 55 x 44 x 13 mm. Its miniature size allows it to fit into tight enclosures or directly onto compact electronic control boards without requiring significant space.
