Project Description

High Speed Automatic Gates and Roller Doors Control Card

Variable Speed Drive control for 3-phase 240VAC motor

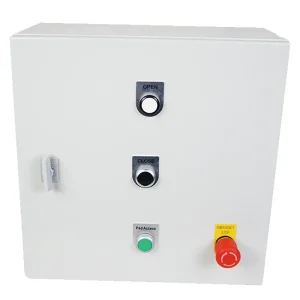

The MCi Controller has been specifically designed to control Variable Speed Drives (VSD). Elsema’s MCi-VSD kit comes with its own Omron VSD for controlling a 3-phase 240 Volt AC motor. There are 4 different kits available for different motor sizes:

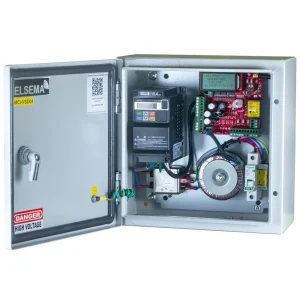

  • MCi-VSD04: Suitable for 0.4kW (1/2hp) motor
  • MCi-VSD07: Suitable for 0.75kW (1hp) motor
  • MCi-VSD15: Suitable for 1.5kW (2hp) motor

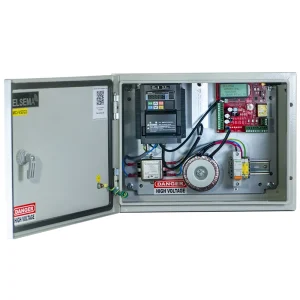

  • MCi-VSD22: Suitable for 2.2kW (3hp) motor
User Manual
Inverter Connection
Connection Diagram
Contactor Connection

The MCi card only version can also be used to control almost all types of VSD’s or even contactors. The relay outputs on the MCi are voltage free contacts, allowing the user to connect it to VSD’s Open, Close & Common inputs (Forward, Reverse & Common). It can also be used to operate coils of open and close contactors.

The MCi-VSD kit with Eclipse® Operating System (EOS) automatically does all the confusing and hard to find VSD parameters settings by simply asking the user a few questions. It also gives the user options for more advance settings, where the user can configure each parameter of the VSD. All selections are done in the EOS menu instead of the VSD.

See our iS2000 kit. VSD driven motor for High Speed Sliding Gates

  • Eclipse Operating System (EOS)
  • Braking Resistor included in MCi-VSD
  • Instant stop on obstruction and photo beam interruption
  • Large 4-line LCD to indicate controllers status and setup instructions
  • 1-Touch control for easy setup
  • Profiling using latest intelligent technology
  • Various inputs, push button, open only, close only, stop, pedestrian and photoelectric beam
  • Slow on limit or stop on limit
  • Adjustable auto close, obstruction load and pedestrian access
  • Adjustable lock and courtesy light outputs
  • Variable photoelectric safety beam functions
  • 12 Volt DC Output to power accessories
  • Service counters, password protection, holiday mode and many more features
  • Day & Night sensor
  • Small Size 140mm x 130mm (Card only)

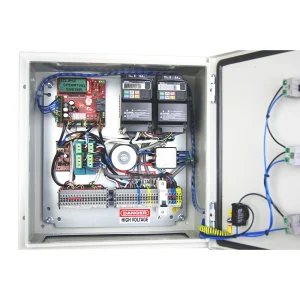

  • Outputs to control Dual Inverter system
  • Options to wire low voltage Contactors
  • Can be used with or without limit switches
  • Auxiliary input can open, close, stop, ped open or disable auto-close
  • For detailed technical data, download the user manual

Order Information:

Part Number Contents Part Number Contents
MCi Double or single VSD controller, card only
MCi-VSD04 Suitable for 0.4kW motor. Kit includes VSD, MCi control card and braking resistor enclosed in a case MCi-VSD07 Suitable for 0.75kW motor. Kit includes VSD, MCi control card and braking resistor enclosed in a case
MCi-VSD15 Suitable for 1.5kW motor. Kit includes VSD, MCi control card and braking resistor enclosed in a case MCi-VSD22 Suitable for 2.2kW motor. Kit includes VSD, MCi control card and braking resistor enclosed in a case
