Project Description

Industrial Controller for 240VAC Motors

Used on Heavy Duty Cycle Roller Shutters, Sectional Doors, Garage and Sliding Door

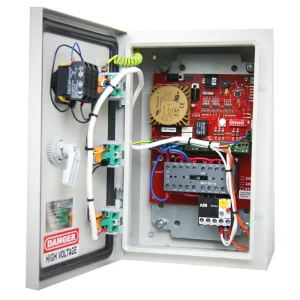

The 240S3E and 240S4E industrial controller uses German designed ABB contactors and thermal overloads to control the 240 VAC motor. The 240S3E is for 240 VAC motors using 3 wires and the 240S4E is for 240 VAC motor using 4 wires.

A toroidal transformer is used to power the control card and contactors.

Using a toroidal transformer offers the following advantages:

  • Excellent efficiency and low leakage losses reducing your electricity consumption
  • High isolation which protects the electronics from noisy power lines
  • Low magnetic field radiation and no acoustic noise enabling the controller to pass EMC and other stringent radiation tests

This is the quality you should demand when using 240 VAC motor controllers.

Download Resources

User Manual
Connection Diagram
  • Adjustable auto close
  • Auto-reset thermal protection
  • External key switch for safety and security
  • Dead man controls for open and close buttons
  • Automatic ground and travel distance calibration
  • Photocell, pedestrian and wireless remote control inputs
  • Supports NC or NO limit switch inputs or travel timer setup
  • Aux relay output to control courtesy lights and other accessories
  • 24VDC output to supply external accessories such as loop detectors, swipe cards etc
  • Customised models available upon request
  • Suitable for motors up to 2.0kW (2.6HP)
  • Can be used with NO or NC limit switches
  • Test buttons for control inputs
  • Dual interlock for added safety
  • LEDs indicate when inputs are active. A very handy feature during installation or troubleshooting.
  • For detailed technical data, download the user manual

Order Information:

Part Number Contents Part Number Contents
240S3E-9.0
  • Suitable for 240VAC 3-Wire motors up to 1.5kW (2.0HP)
  • UP/DOWN/STOP external buttons
  • External key switch
  • 190 x 290 x 140 mm
240S4E-9.0
  • Suitable for 240VAC 4-Wire motors up to 1.5kW (2.0HP)
  • UP/DOWN/STOP external buttons
  • External key switch
  • 190 x 290 x 140 mm
240S3E-12
  • Suitable for 240VAC 3-Wire motors up to 2.0kW (2.6HP)
  • UP/DOWN/STOP external buttons
  • External key switch
  • 190 x 290 x 140 mm
240S4E-12
  • Suitable for 240VAC 4-Wire motors up to 2.0kW (2.6HP)
  • UP/DOWN/STOP external buttons
  • External key switch
  • 190 x 290 x 140 mm
