Project Description

PCR43305R

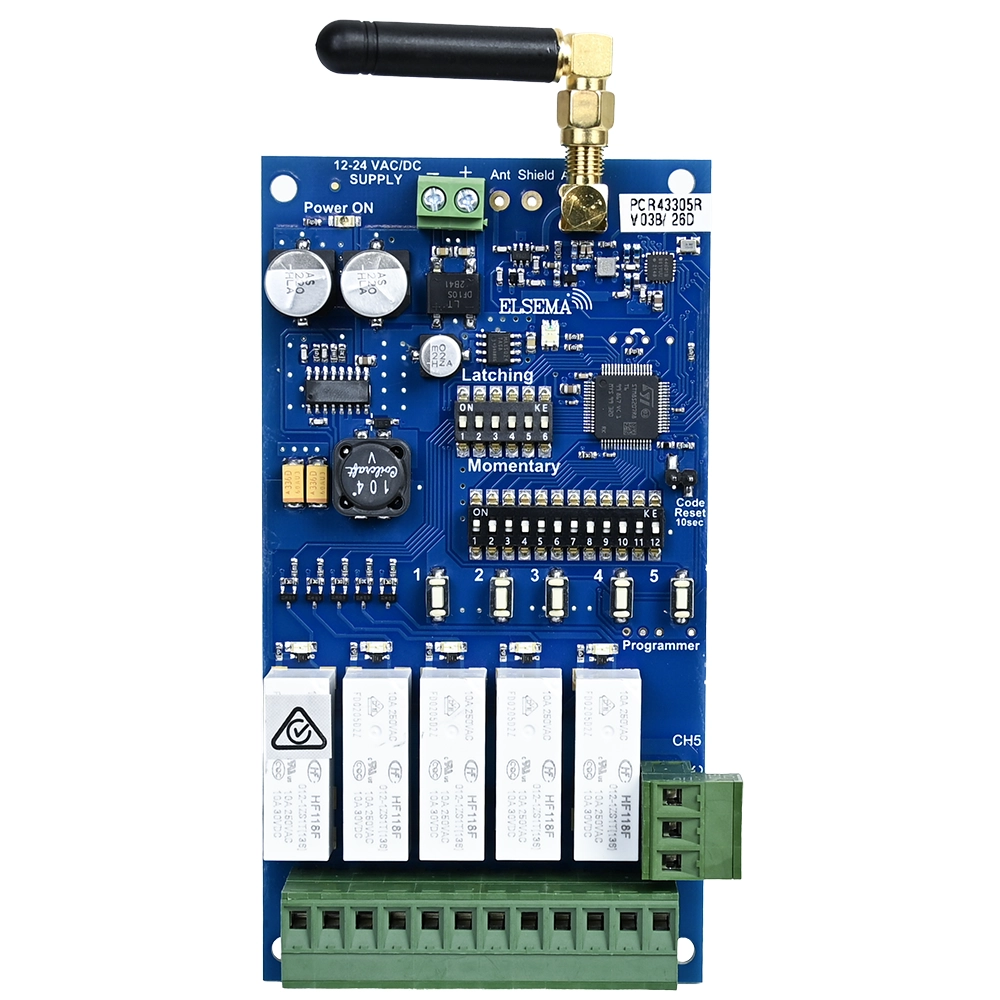

5 Channel 433MHz Receiver with Frequency Hopping

This receiver is compatible with “PentaFOB® and “PentaCODE® remotes. It has five relay outputs which can be switched “on” and “off ” independently. The relays are capable of switching loads of up to 10 Amps at 240Volts AC.

The PentaCODE® dual coding system gives the installer the option to use the classic 12-way dip switch coding or one of over 17 billion encrypted codes.

With the 12-way dip switch, just match the keyring remotes and the receiver’s dip switch and it’s coded. With the encrypted code you switch all the 12-way dip switches OFF and the remote and receiver automatically goes into the encrypted coding. Please see coding instructions for encrypted coding procedure.

User Manual
  • Five channel receiver with relay outputs
  • 12-way dip switch coding or one of over 17 billion encrypted codes.
  • Supply voltage can be AC or DC
  • Antenna diversity
  • Frequency hopping
  • Compatible with “PentaFOB® and “PentaCODE®remotes
  • Unlimited remotes can be programmed to the receiver
  • Highly sensitive receiver input stage
  • Crystal controlled for high reliability
  • Modes include Momentary, latching and security latching
  • E version available with C1020 case
  • Optional QM150 bracket available for easy mounting to cases or walls
  • Supply Voltage: 11.0 – 28 VAC/DC. Can use Elsema DC or AC power supply, 12PP1000 or 24PP.
  • Current Consumption: 15 mA standby
  • Operating frequency: 433.100 to 434.700 MHz
  • Sensitivity: Better than 0.316µV (-117dBm)
  • Relay Output: Five change over relay outputs, rated at 10 Amps / 240VAC
  • Antenna: Elsema ANT 433MHz series
  • Dimensions: 130 x 70 x 20mm
  • Useable Transmitters: All Elsema type PCK433 & FOB433 series
  • Ideal for Industrial Automation, eg Crane Control, winches, wireless cement truck operation.

Order Information:

Part number Description Part number Description
PCR43305R Receiver with 5 Relay Outputs. PCR43305RE 5-Channel Receiver Enclosed in a Case.
