Project Description

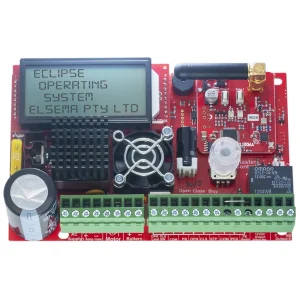

Automatic Gate Control Card

Controller for Single Automatic Sliding and Swing Gate

The Motor Controller Single (MCS) is not just the next generation but the industry game changer. We wanted to create a controller that is simple to use and does just about any feature required in the gate and door industry. The MCS is not just the next generation but the “Next Transformation” in the gate and door industry creating an Eclipse over previously developed motor controllers.

This new intelligent motor controller is the best match for your automatic gate or door motors.

Download Resources

User Manual
Connection Diagram

The MCS’s Eclipse® Operating System (EOS) is a user friendly menu driven system that uses the 1-touch button to control, setup and run automatic gates, doors and barriers. It uses a large 4-line LCD screen showing live reading of the motor performance and status of all inputs and outputs.

The controller is available with an IP66 rated plastic enclosure with backup batteries, solar gate kits or card only.

  • Lithium-ion and lead acid battery charger
  • Suitable for single swing and sliding gates
  • Single motor operation
  • Motor soft start and soft stop
  • Speed and force adjustment
  • MCS is suitable for motors up to 120 Watts. Above 120 Watts use MCSv2
  • Large 4-line LCD to indicate controllers status and setup instructions
  • 1-Touch control for easy setup
  • Auto profiling using latest intelligent technology
  • Various inputs, push button, open only, close only, stop, pedestrian and photoelectric beam
  • Supports limit switch inputs or mechanical stops
  • Adjustable auto close, obstruction load and pedestrian access
  • Adjustable lock and courtesy light outputs
  • Variable photoelectric safety beam functions
  • nergy saving mode to reduce running costs
  • 12 and 24 Volt DC Output to power accessories
  • Service counters, password protection, holiday mode and many more features
  • Small Size 90mm x 140mm (Card only)
  • MC is suitable for motors up to 120 Watts. Above 120 Watts use MCv2
  • Standby current : 12mA
  • Can be used with or without limit switches
  • For detailed technical data, download the user manual

Order Information:

Part Number Contents Part Number Contents
MCS Single gate and door controller for 24 or 12 Volt motor, card only
MCS24E Single controller for 24 Volt motors includes IP66 rated plastic enclosure and transformer MCS12E Single controller for 12 Volt motors includes IP66 rated plastic enclosure and transformer
MC2S4E2 Same as MCS24E plus 24 Volt 2.3Ah backup battery MCS12E2 Same as MCS12SE plus 12 Volt 2.3Ah backup battery
MCS24E7 Same as MCS24E plus 24 Volt 7.0Ah backup battery MCS12E7 Same as MCS12E plus 12 Volt 7.0Ah backup battery
MCS24E12 Same as MCS24E plus 24 Volt 12.0Ah
backup battery
MCS12E12 Same as MCS12E plus 12 Volt 12.0Ah backup battery
Solar Gates
Solar24SP Solar kit for double or single gates, includes
MPPT charger & 24 Volt 15.0Ah backup battery and a 40W solar panel.
Solar12 Solar kit for double or single gates, includes
intelligent solar charger &12 Volt 15.0Ah
backup battery.
Solar Panels Elsema stocks a range of solar panels.

MC is suitable for motors up to 120 Watts. Above 120 Watts use MCv2
